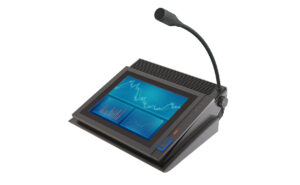

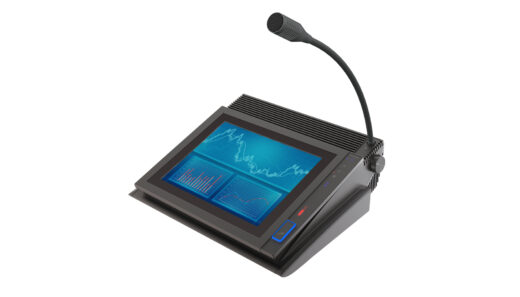

BeFREE 10 (BF10) - 10.4'' Touchcomputer with Integrated Intercom
Voice Communication Dispatching Device
The BeFREE 10 (BF10) is a member of the modular FREE (also referred to as FREE/FREE+/BeFREE) product family, integrating a 10.4” touchmonitor, a computer and an intercom device. It is compatible and combinable with all existing FREE modules. The touchmonitor comprises a high resolution (XGA), ultra-wide viewing angle TFT LCD and 5-wire resistive touchscreen. The computer is based on a main-board with Intel quad-core Celeron processor (J6412) and a solid state disk. Thanks to low-power components and the corresponding electronic and thermal design the BeFREE 10 is completely silent and without moving parts.
- Space-saving integration of a fanless computer, touchscreen and microphone and speakers
- 10.4” TFT LCD with XGA resolution (1024 x 768)
- Modular – combinable with other modules of the FREE family into multifunctional terminals
- Low-profile horizontal design
- Silent and reliable – no moving parts, industrial grade components, Ethernet redundancy, redundant internal audio and controller interfaces
- Extensive connectivity (LAN, USB, COM, external display, digital inputs, analog audio)
- Cable management – hidden and secured, but accessible
- Built-in Tipro Controller
- Stereo loudspeakers (5W each) with volume control encoder
- Goose-neck microphone with illuminated PTT key
- Three-colour bar-graph display
- Three mechanical keys for brightness control, volume adjustments and other functions
- Several LED indicators (power, SSD, microphone, touchscreen …)
- Optional HID Gamepad Interface
- Optional Inclination Mechanism (VESA 75)
- Operator/Dispatcher terminals/consoles for command and control centres in:
- Transport and traffic control (railways, air traffic …)
- Public safety (police, fire brigades, ambulance …)
- Utilities (electricity, gas …)
- Building/facility management systems (airports, banks, industrial plants …)
- Trading and banking consoles
- Multifunctional control panels
Computer
- Intel Quad-Core 64-bit J6412 processor (SoC) with 8 GB RAM (optional 16 GB or 32 GB RAM)
- Solid-State Disk 256 GB
- Operating System: Windows, Linux supported. Android possible-limited support. Supplied without operating system.
Display
- Industrial grade 10.4” high-brightness TFT LCD with XGA (1024 x 768) resolution
Touchscreen
- Projected Capacitive (PCAP) touchscreen, Anti-Glare
Intercom
- Stereo loudspeakers (5W each) with two separate volume control encoders
- Goose-neck microphone with illuminated PTT key
- USB audio device
- Connected to the internal sound card (analogue interface)
- Connection for analogue switching Handset
- Optional echo-canceller with a digital signal processor
Modular & Programmable
- Can be combined with other modules from FREE family, e.g. Handset, keyboard
- Keys can be programmed as keyboard emulation, HID Telephony events
- Audio settings can be programmed (volume settings, microphone sensitivity, PTT/PTM, HOOK events, etc)
- All settings stored in hardware, configuration software: ChangeMe
- Hardware Echo Cancellation
For use with duplex audio, in case no echo cancellation is present in software, we offer an optional hardware echo canceler. - Handset
Because of the modular design, the BeFREE can be combined with one or more Handsets on the left or right side. The handset can be either:
– USB; Besides the Handsfree audio, this offers an extra, independent, voice channel
– Analog Switching; There is one audio (voice) channel that switches automatically from Handsfree to Handset when lifting the Handset. - Keyboard
If more shortcut keys are needed, a programmable keyboard can be added to the BeFREE. - Inclination Mechanism
To change the angle of the display, an optional Inclination Mechanism can be mounted.
